TMM300 coordinate measurement machine – ideal for stable measurements on the shop floor

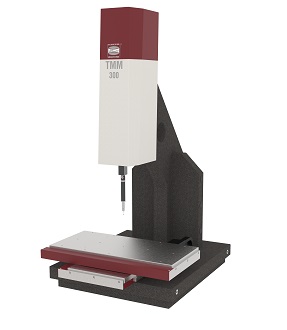

TMM300 coordinate measurement machine
TMM300 coordinate measurement machine

The TMM300 is the ideal Tactile measurement CMM for accurate, reliable measurement of small components on the shop floor.   The TMM300 has a robust, dimensionally stable granite construction which guarantees highly repeatable measurement values and incorporates a TP200 tactile probe.  Modern, intuitive U-Soft Solid Ultra measurement and analysis software completes this high performance system.

Larger models are available up to 1000mm x 2000mm x 800mm range (900kg workpiece weight).

Specifications

Measurement range (X x Y x Z) 300mm x 200mm x 300mm
Max workpiece weight: 50kg
Resolution: 0.0001mm

Length measurement uncertainty:

(DIN EN ISO 10360-2)

Tactile (1D)
(1.7 x L/300mm) µm
Tactile (2D)
(2 x L/300mm) µm
Tactile (3D)
(2.6 x L/250mm) µm
